15km Ground Surveillance Radar Composed Of Radar Array And Power Distribution Control Box

Name: 15km Ground Surveillance Radar Composed Of Radar Array And Power Distribution Control Box
Brand: TOPSKY
Price: 55000 USD

Brand Name : TOPSKY

Model Number : YSR

Place of Origin : China

MOQ : 1set

Price : USD55000/set

Payment Terms : T/T

Supply Ability : 10sets/month

Delivery Time : 30days

Packaging Details : carton box

technology : radar

detect distance : more than8km

vehicle distance : more than 15km

frequency : C band

weight : 20kgs

size : 68*47*23cm

Contact Now

XW/SR216 Security Surveillance Radar

1.Product function and use

The XW/SR216 security surveillance radar is mainly composed of a radar array and a power distribution control box. It is used for the detection, alert and target indication of pedestrians, vehicles or ships in key areas such as borders, airports, and military bases. It can accurately give the target Track information such as bearing, distance and speed.

2. Main specifications

Item	Performance parameters
Work system	Phased array system (azimuth phase scan)
Operating mode	Pulse Doppler
Working frequency	S band (5 working frequency points)
Maximum detection distance	≥ 8km(pedestrian) ≥ 15km(Vehicle/vessel) ≥ 5km(Drone)
Minimum detection distance	≤ 100m
Detection range	Azimuth coverage:≥90° Elevation coverage:≥18°(Adjustable range of center point -12°～12°)
Detection speed	0.5m/s～45m/s
measurement accuracy	Distance accuracy:≤ 8m Bearing accuracy:≤ 0.8° Speed accuracy:≤ 0.5m/s
Data rate	≥ 0.5 times/s
Data interface	RJ45, UDP
Power and power consumption	Power consumption:≤200W power supply:AC220V
working environment	Operating temperature:-40℃～+55℃； Storage temperature:-45℃～+65℃； Waterproof grade is not lower than IP66.
Outside size	682mm×474mm×232mm
Weight	≤20.0kg
1) Note: 2) 1) Detection distance conditions: pedestrians, vehicles (ships) or drones with a radial velocity of not less than 0.5m/s, the probability of false alarm is 10-6, and the probability of detection is 0.8; 3) 2) The typical target of the drone is DJI "Elf 3"; 4) With the corresponding power distribution control box, up to 4 arrays can be spliced together to achieve 360° azimuth coverage.

Product Tags:

15km ground surveillance radar

S band ground surveillance radar

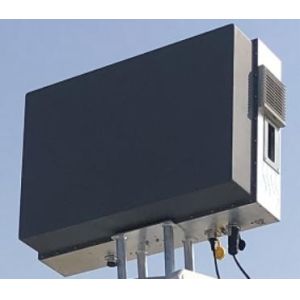

15km Ground Surveillance Radar Composed Of Radar Array And Power Distribution Control Box Images
